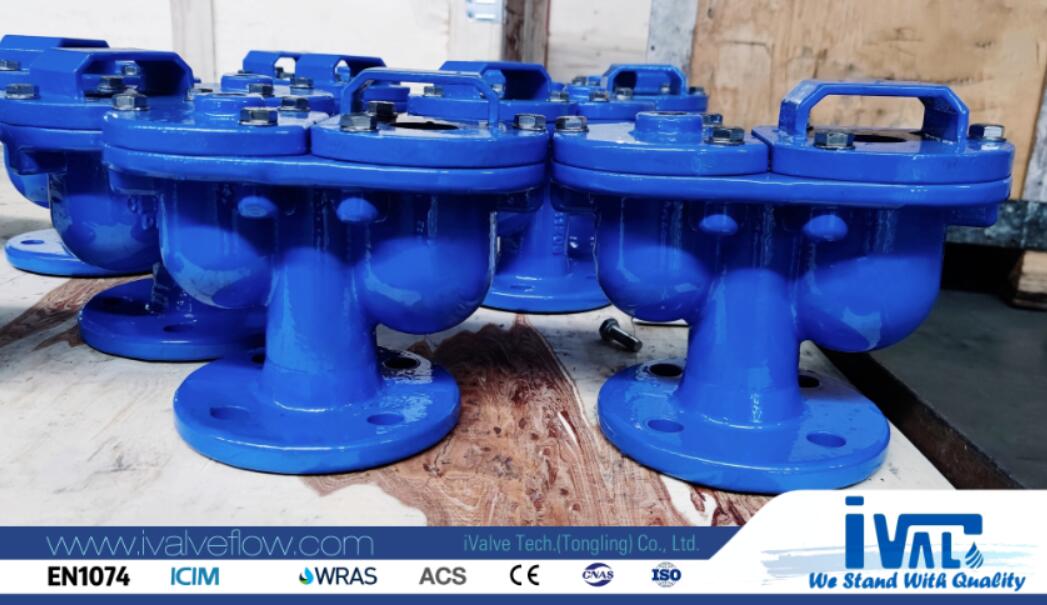

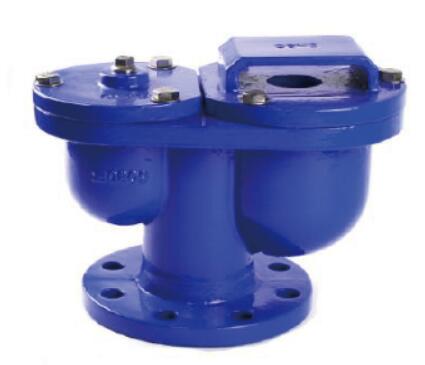

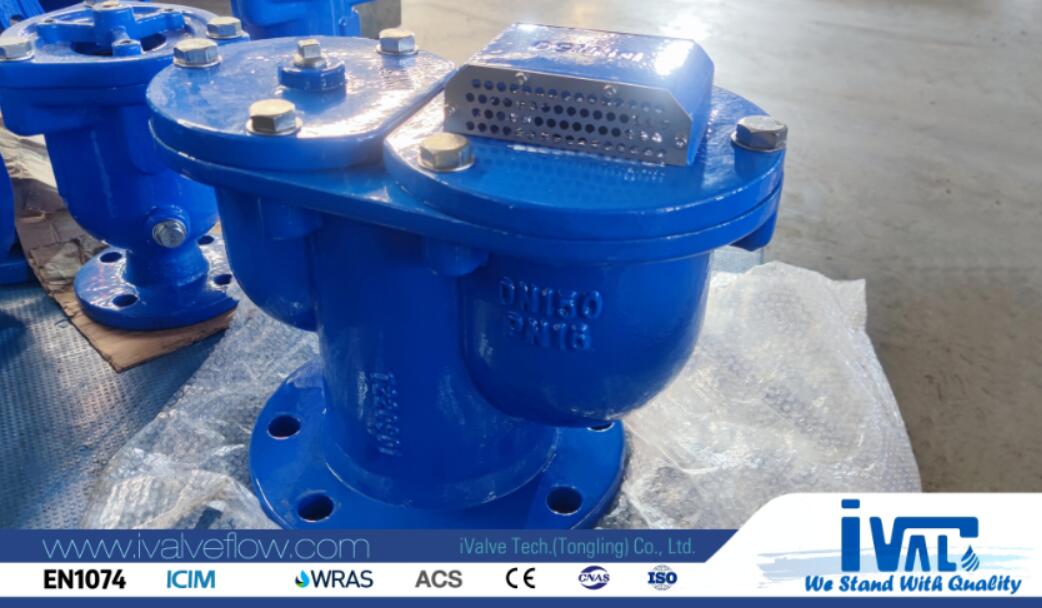

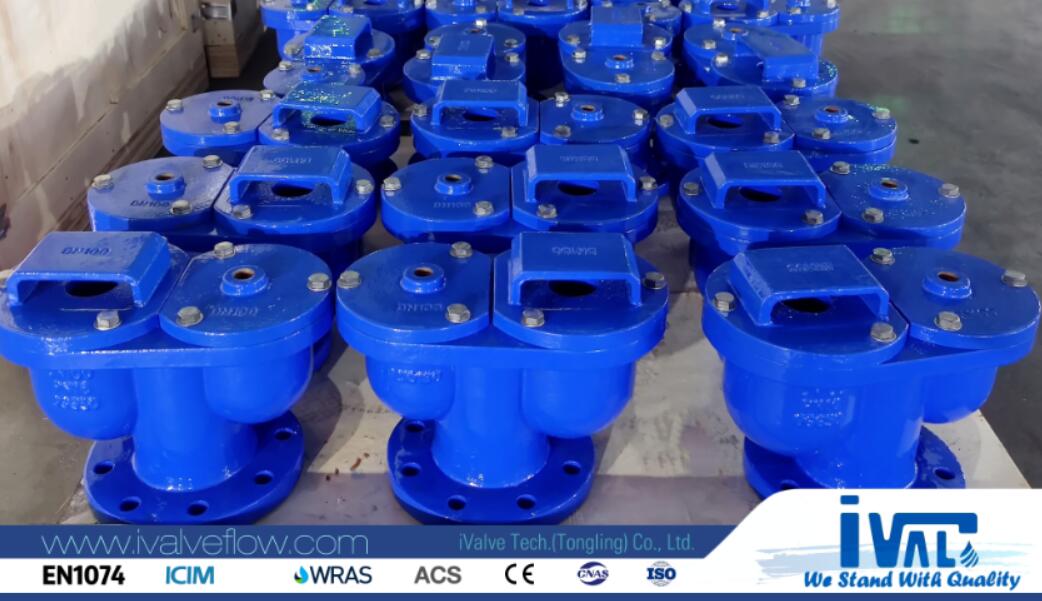

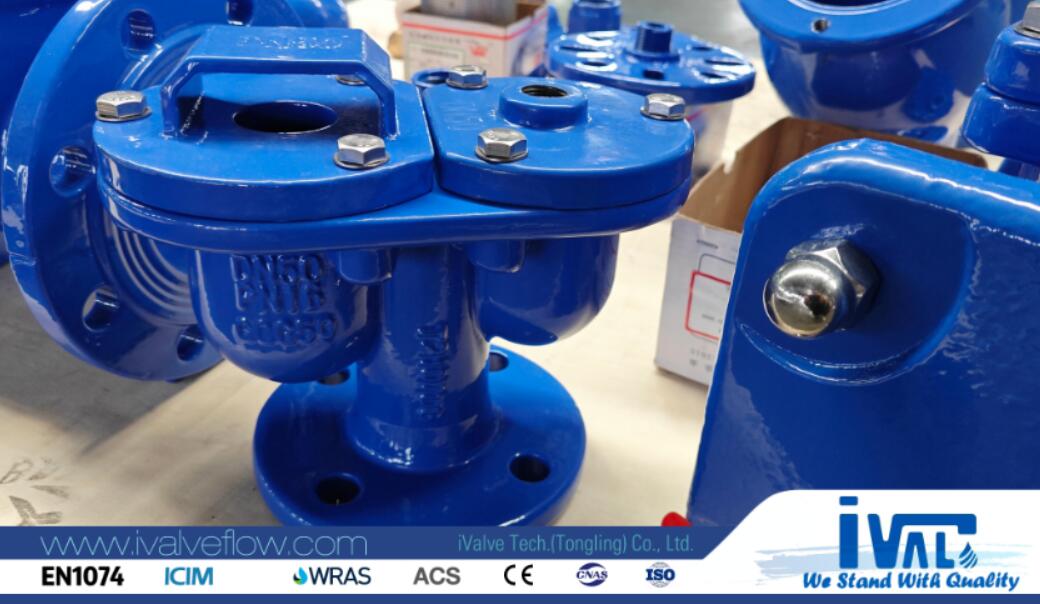

Double Orifice Air Valve

? discharge large air flow from water pipeline

? admit large air flow into water pipeline

? purge entrapped air from pipeline under pressure

Features:

? Flow Media – Clean Water , air

? Applications – Water systems, firefighting and irrigation system

? Little maintenance

? Effective corrosion protection

? Bottom rubber buffer for collision prevention

? Fully expoxy prainting coated inside and outside 250μm

??It can eliminate the gas in the pipeline, reduce the resistance and save energy.

? When the pipeline is under negative pressure,the product can automatically suck in air to prevent the pipeline from breaking.?

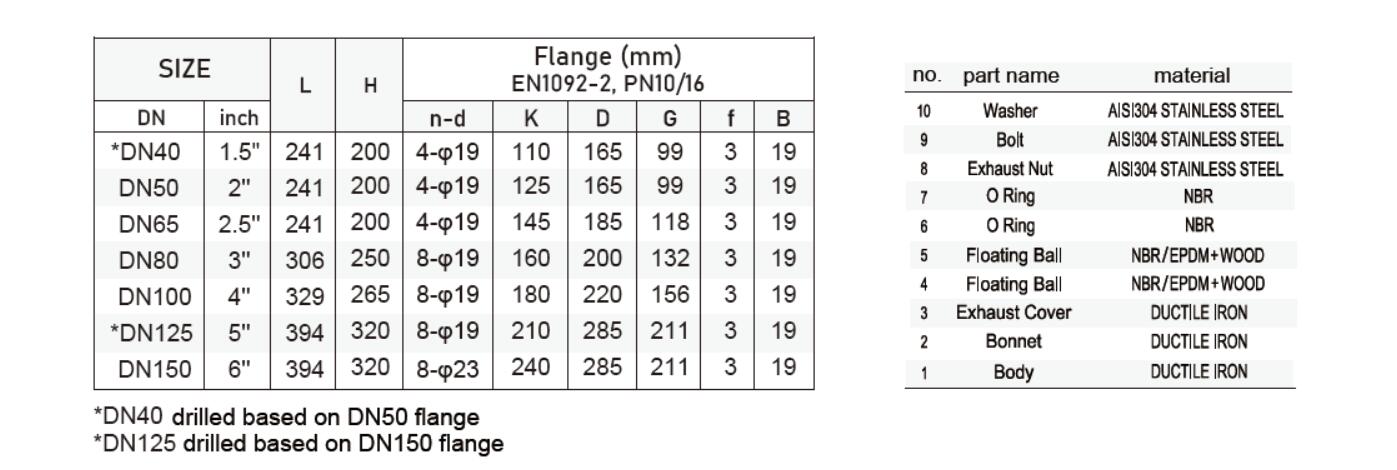

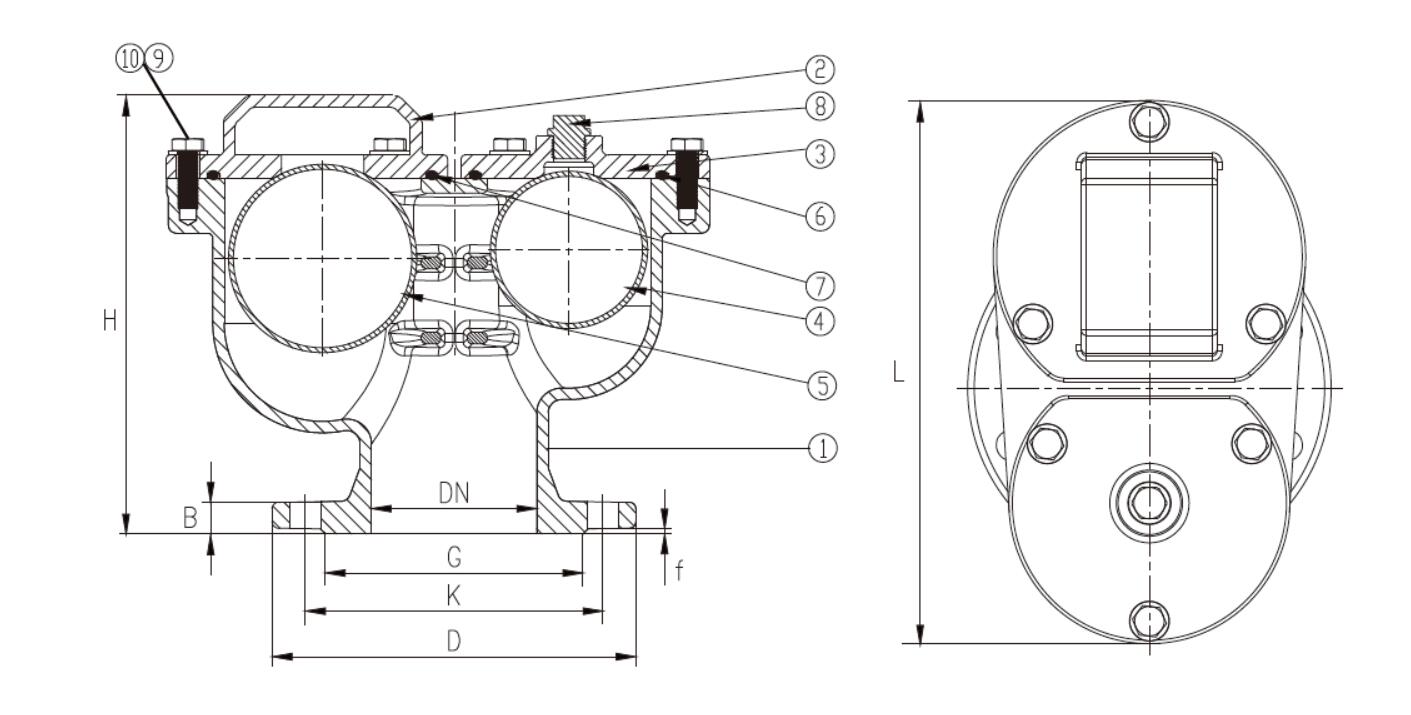

Technical Data
