AWWA C515 Resilient Seated Gate Valve?

AWWA C509 Resilient Seated Gate Valve?

CL125 / CL150

? Online maintenance; If sealing parts in the bonnet are broken, we could replace the sealing parts with the valve completely open when the valve is still in the pipeline.

? Class A sealing (ZERO LEAKAGE)

? 100% testing before packing and delivery.

? Completely free and full bore self-cleaning & low-pressure loss.

? Clockwise closing (CWC) as standard, anticlockwise closing upon request.

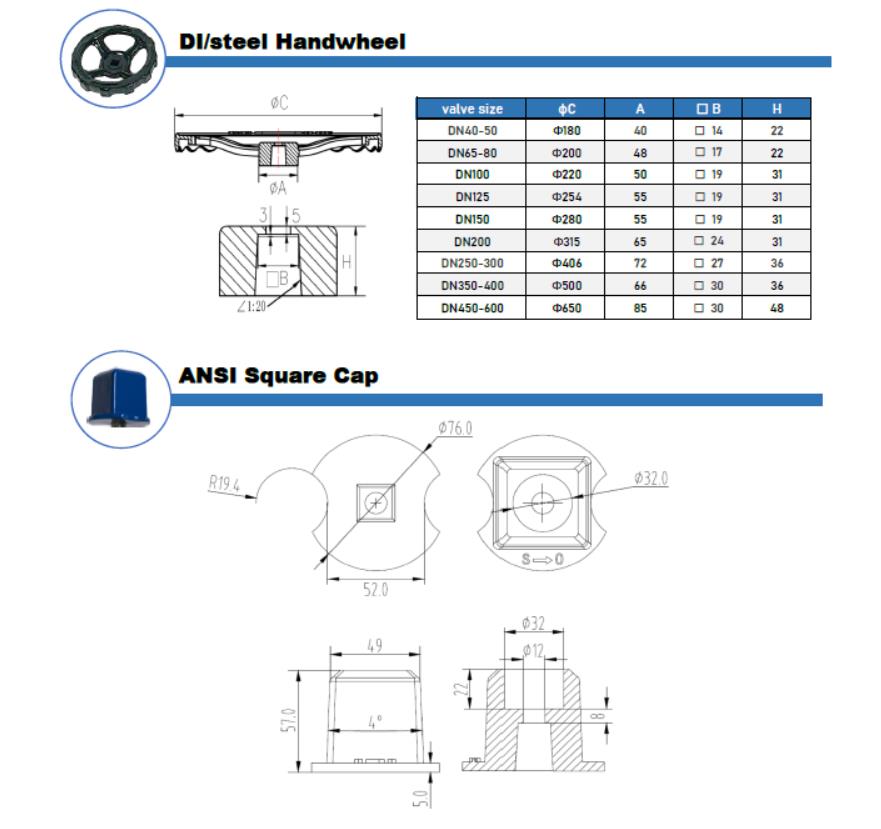

? Operation: Manual handwheel, Square Cap, Extension Spindle.

? Bolts in Galvanized Carbon Steel, sealed with hot melt to prevent corrosion.?

? O-ring bonnet gasket wraps each bolt to prevent corrosion.

? Linear sealing design provides better sealing & lower closing torque.

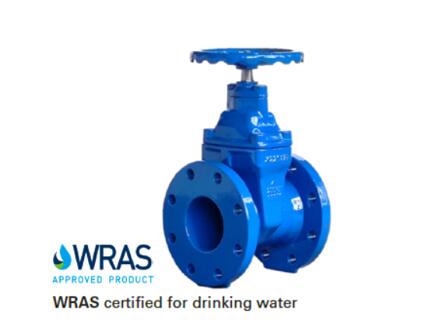

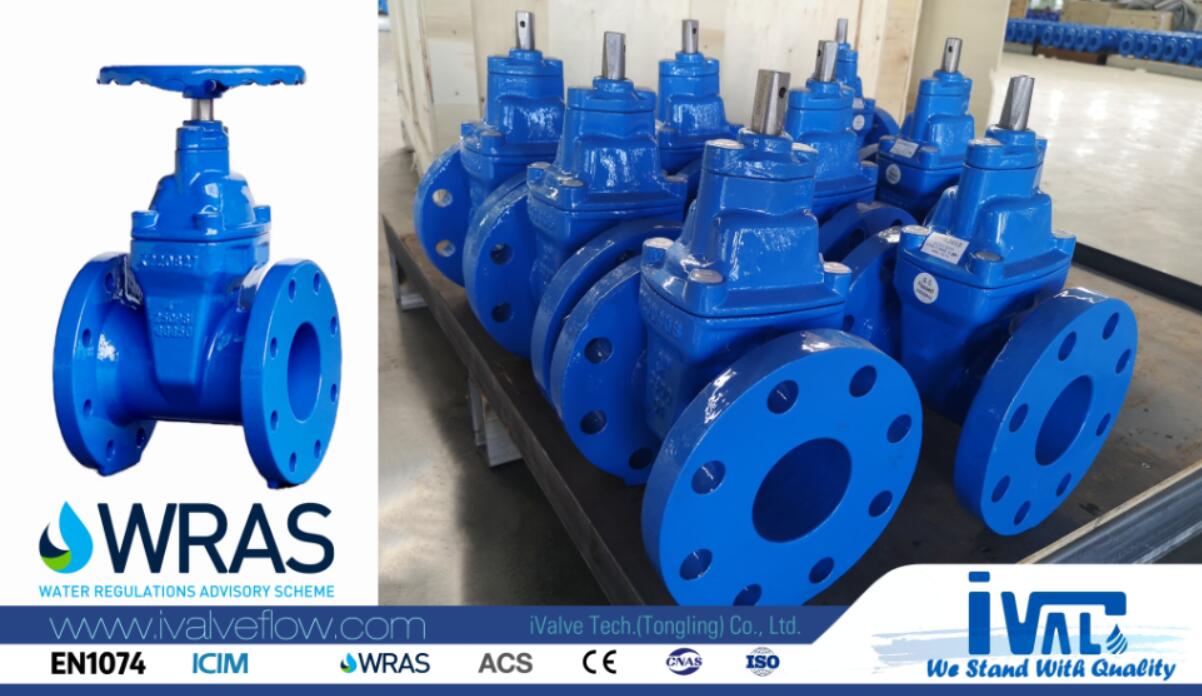

? WRAS approved for drinking water.
